Embedded vision module
Cormorant N6
Onboard AI for autonomous aircraft. Designed for supply chain resilience.
01 — Product overview
High Performance. Low SWaP. At the Edge.

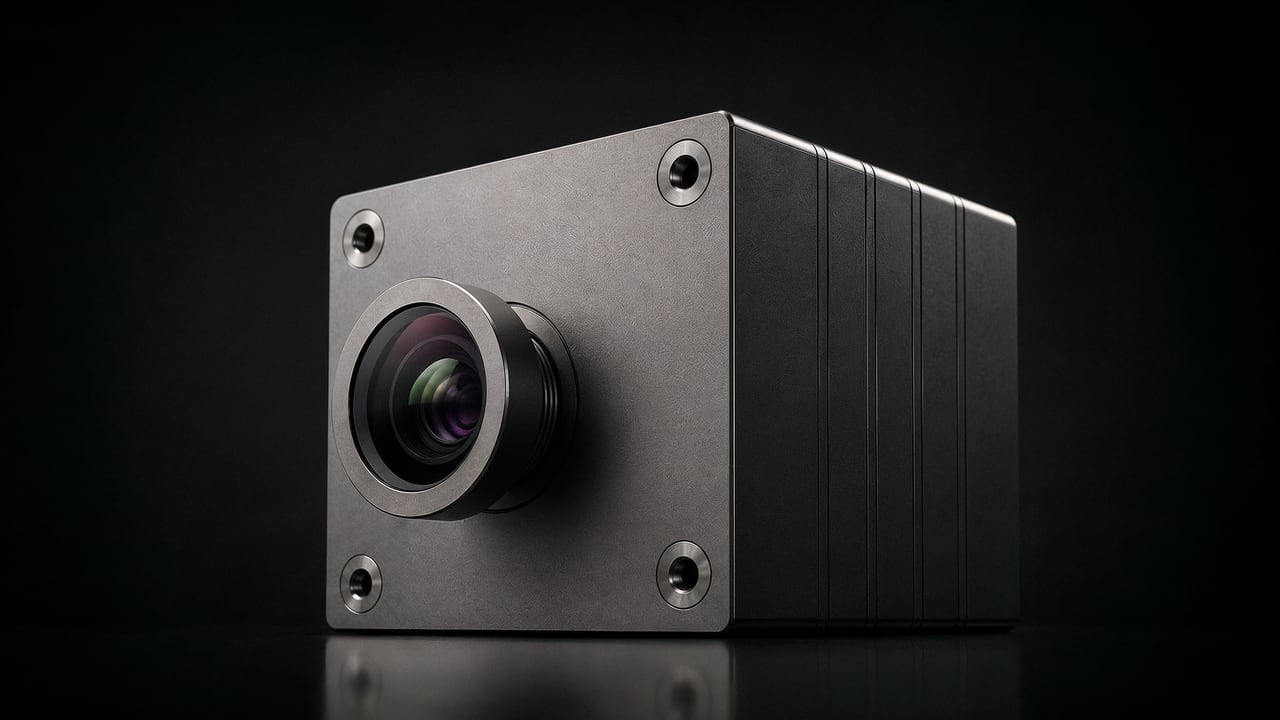

The Cormorant N6 combines a high-performance image sensor, an integrated AI accelerator, and embedded vision processing in a compact, low-power module. It is engineered to maximize European sourcing and reduce dependence on fragile global supply chains. It captures, processes, and interprets imagery entirely onboard, eliminating the need for a companion computer while reducing system size, weight, power, and integration complexity.
- <50 g
- <1 W
02 — Supply chain
European by design.
Engineered to maximize European sourcing and reduce dependence on fragile global supply chains — from silicon to final assembly.
- 01Maximized European sourcing
- 02ITAR-free architecture
- 03China-free components
- 04European assembly and test
03 — Capabilities
01
Self-Contained
Optimized for real-time onboard AI vision processing in demanding applications.
02
SWaP Optimized
Compact, lightweight, and under 1 W for easy integration into size and power-constrained platforms.
03
Mission Adaptable
Supports a broad range of vision capabilities without hardware redesign.
04 — How it works
Step 01
Live imagery
The onboard camera continuously captures the terrain below the aircraft.
Step 02
Onboard processing
Live frames are processed by the integrated AI accelerator, on the module itself.
Step 03
Interpretation
Imagery is interpreted entirely onboard — no companion computer.
Step 04
Flight controller
Results stream straight into the autopilot via MAVLink or DroneCAN.
05 — Technical specifications
- Core processor
- STM32 N6 with 600 Gops NN accelerator, 64MB RAM
- Image sensors
- Global Shutter (2.3 Mpx color), Rolling Shutter (12 Mpx color), LWIR (QVGA)
- Resolution & framerate
- 1920×1200 @ 120 fps or 4608×2592 @ 15 fps (or lower resolution at larger fps, SW selectable)
- Interfaces
- UART (MAVLink), CAN bus (DroneCAN), USB Video
- Programming environment
- OpenMV-compatible (MicroPython), SDCard for code and models
- Operating voltage
- 5 V ±10% (optional I/O board: 5 V DC or 6–36 V DC)
- Power consumption
- <1 W

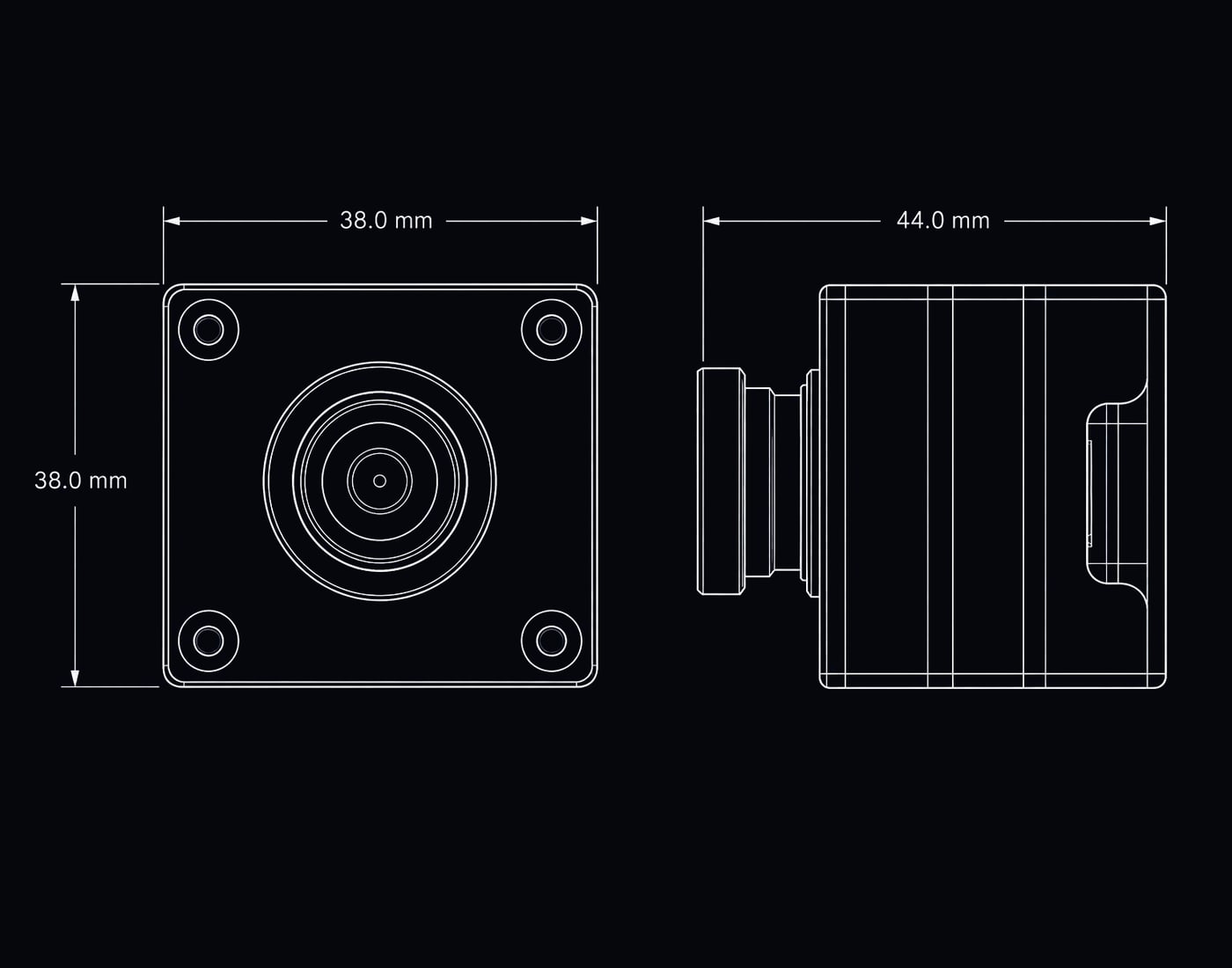

- Form factor
- 35 × 35 mm, 25 g (board only)
06 — Contact
Bring onboard vision to your platform.
Evaluation units, integration questions, OEM volumes — write to us directly.
